The rosette in our sampling shack in between stations. The CTD is mounted near the bottom of the frame in the centre. The grey Niskin bottles are then mounted in a circle around it.
(Zoe Sandwith)

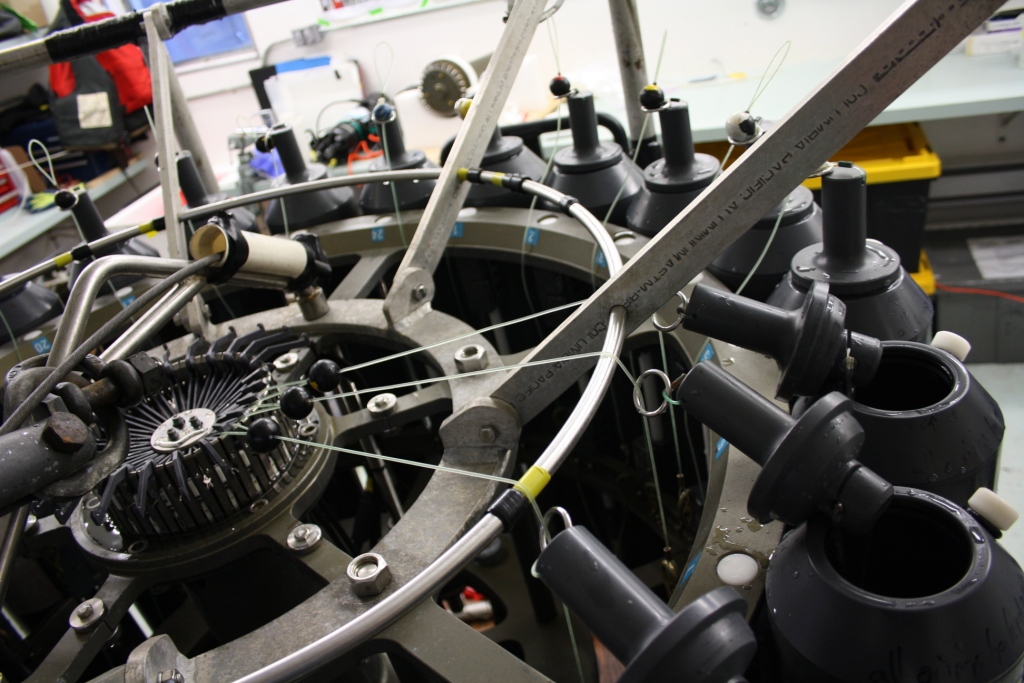

When preparing the rosette for deployment, the Niskins are cocked open. The two end caps are connected by a spring on the inside, and a leash on the outside. The leash is tightened and stretched to connect to the rosette’s central carousel of latches. When the signal is sent to fire the Niskin, the latch is released, and the spring snaps the end caps shut, trapping the water.
(Zoe Sandwith)

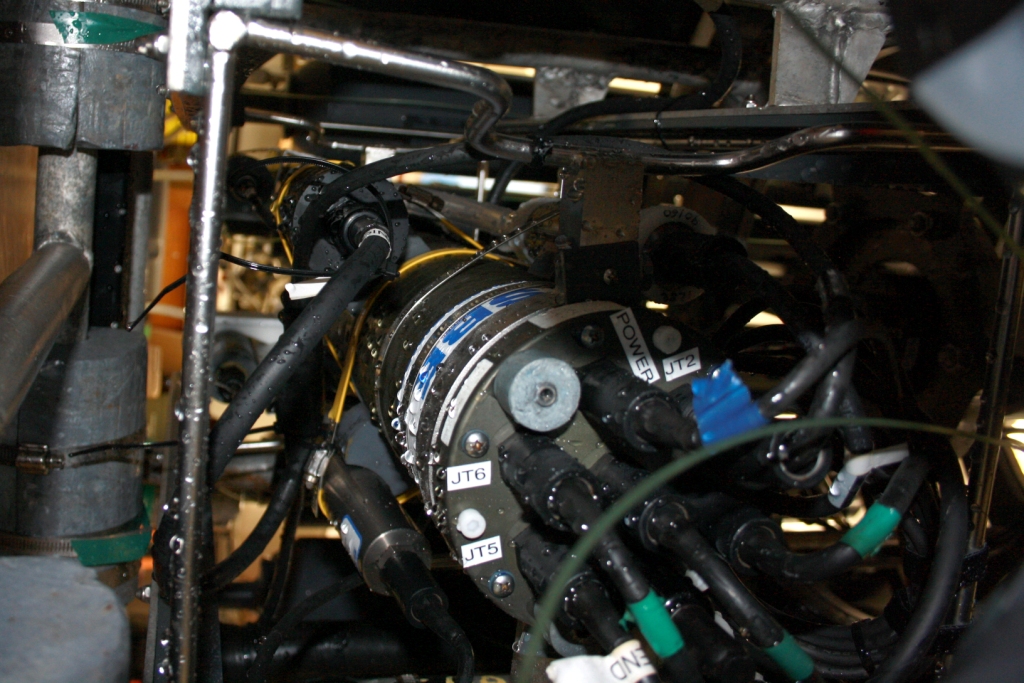

The CTD package hidden away in the base of the rosette.
(Zoe Sandwith)

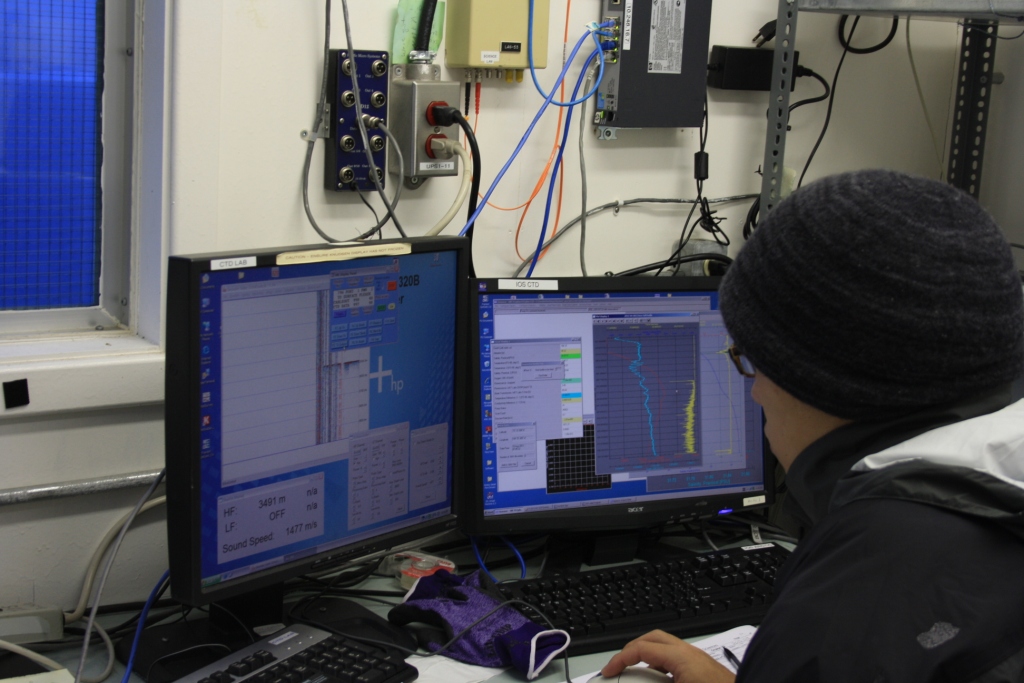

Yusuke Ogiwara operates the computer controls.
(Zoe Sandwith)

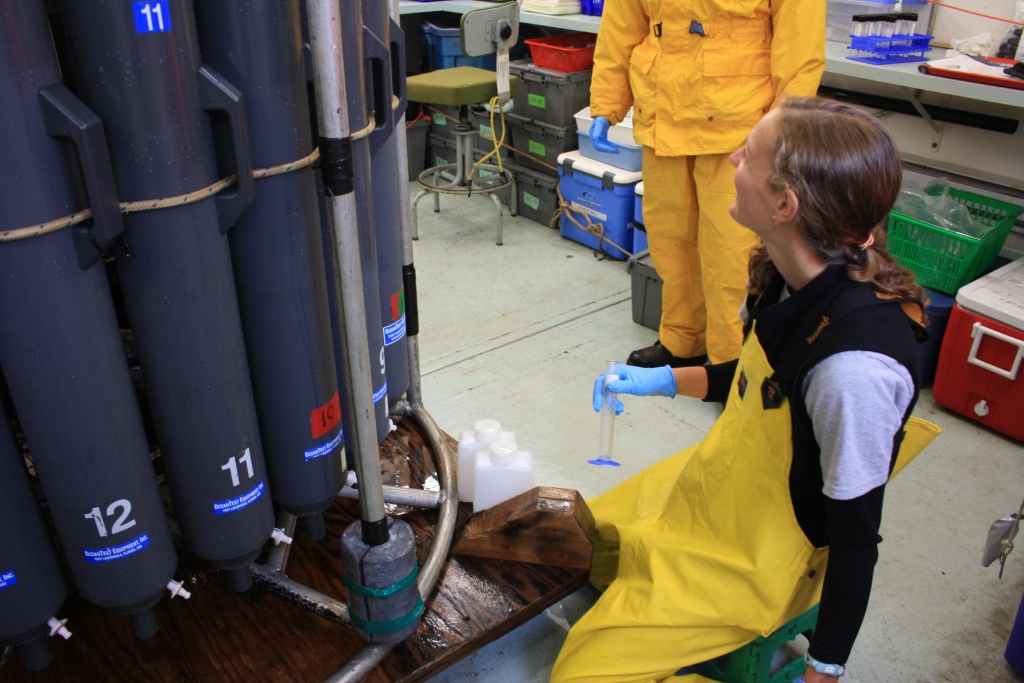

Kristina Brown has a laugh before drawing an ammonium sample.
(Zoe Sandwith)Text, images, graphics and other material contained on this website are subject to copyright. For more information or to license material, please contact the Director of Digital Assets, images@whoi.edu or (508) 289-2647.
